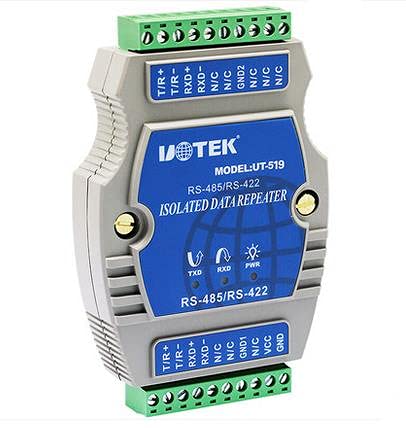

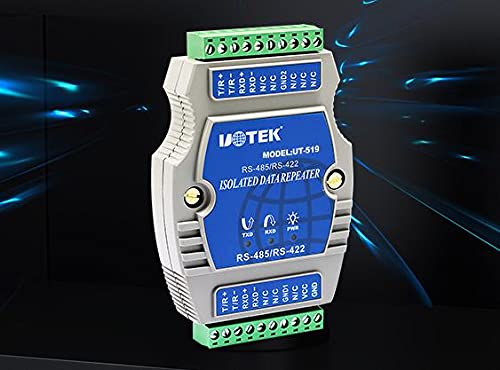

Ut-519 rs485/422 Signal Amplification Module 485 Repeater Anti-Interference Extender Module Intensifier high Power Enhancement

Product features: ·Extending the communication distance of 485 / 422 bus network and improving the network reliability ·Point to multipoint allows the connection of 128 422 or 485 interface devices ·The data communication rate reaches 300-512kbps ·With power indicator and flow indicator, it can indicate the fault There is a zero delay automatic transceiver in the converter ·\/O circuit automatically controls the direction of data flow without handshake signal (such as RTS, DTR, etc.) and jumper setting, realizing full duplex (RS-422) and half duplex (RS-485) mode conversion, plug and play. Using TVs transient voltage suppressor ·Protect the rear circuit components from damage due to transient high voltage impact. ·The protector can effectively suppress lighting and ESD, provide 600W lightning surge protection power for each line, as well as surge voltage and transient overvoltage caused by various reasons on the line, and has small inter electrode capacitance High speed transmission of RS-422 / RS-485 interface is ensured. Built in photoelectric isolator Isolation voltage up to 2500vrms 500VDC continuous DC / DC module Product information Product Name: RS-485 / RS-422 repeater Product model: ut-519 Transmission rate: 300bps-512kbps Working mode: asynchronous half duplex or asynchronous full duplex Transmission medium: twisted pair or shielded wire Overall dimension: 120mmx80mmx25mm Use environment: - 40 ℃ to 85 ℃, relative humidity 5% to 95% Transmission distance: 0-5, 000m (512kbps-9600bps)

• Extending the communication distance of 485 / 422 bus network and improving the network reliability
• Point to multipoint allows the connection of 128 422 or 485 interface devices
• The data communication rate reaches 300-512kbps
• With power indicator and flow indicator, it can indicate the fault
