TAILONZ PNEUMATIC Rotary Lever Hand Valve HV-02 1/4”NPT Air Flow Control 3 Position 4 Way
4.5 (118 items)
Limited Time SaleUS$12.59 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 217733093 | Release Date | 2026/04/19 | List Price | US$8.40 | Model Number | 217733093 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

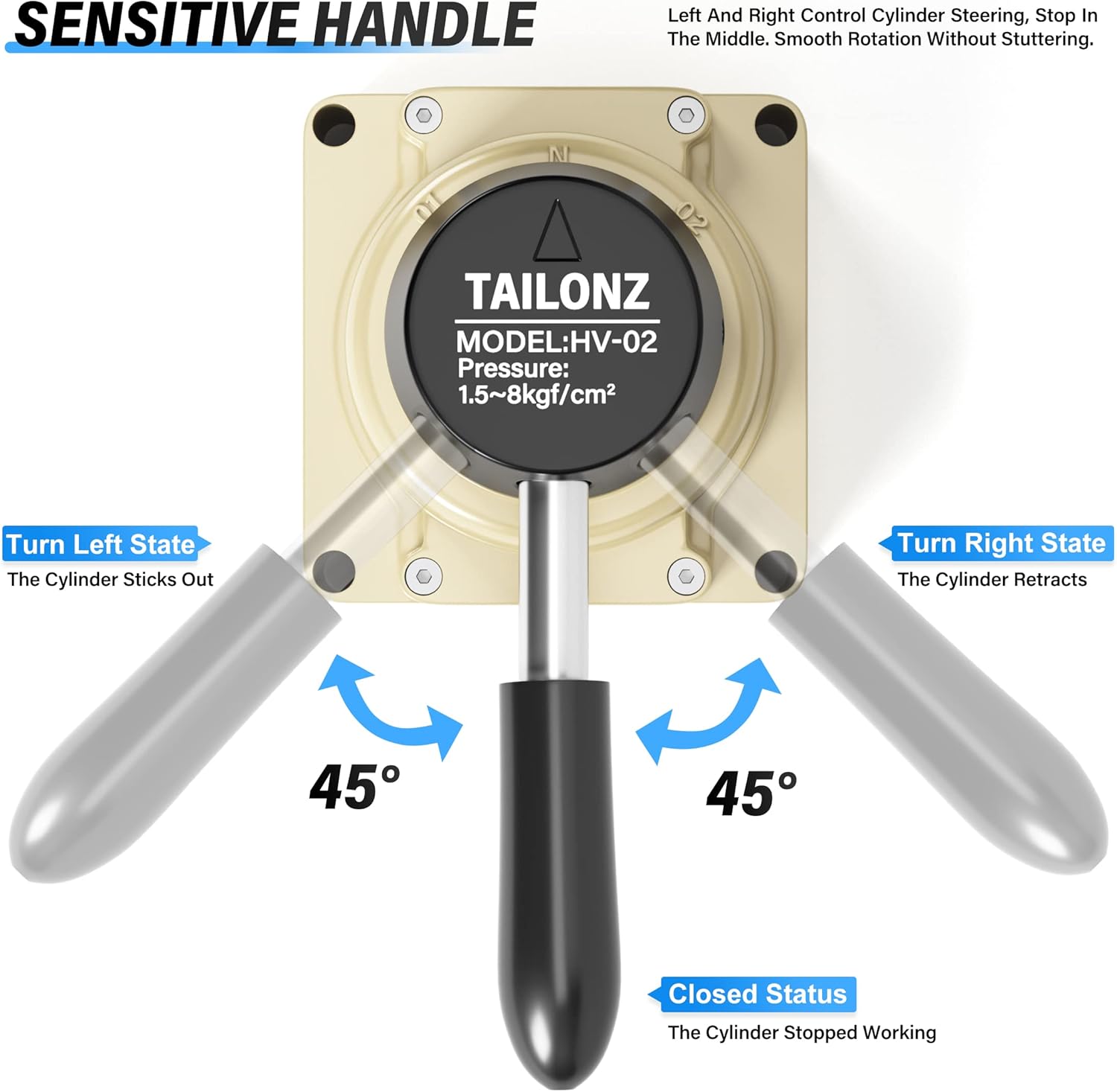

- 【Model】Rotary Lever Hand Valve HV-02
- 【Size】 Air Inlet (P)=1/4”NPT,Air Outlet(A B)=1/4”NPT,Air Exhaust(R S)=1/4”NPT
- 【Pressure range】25-116Psi【Working temperature range】32~140℉

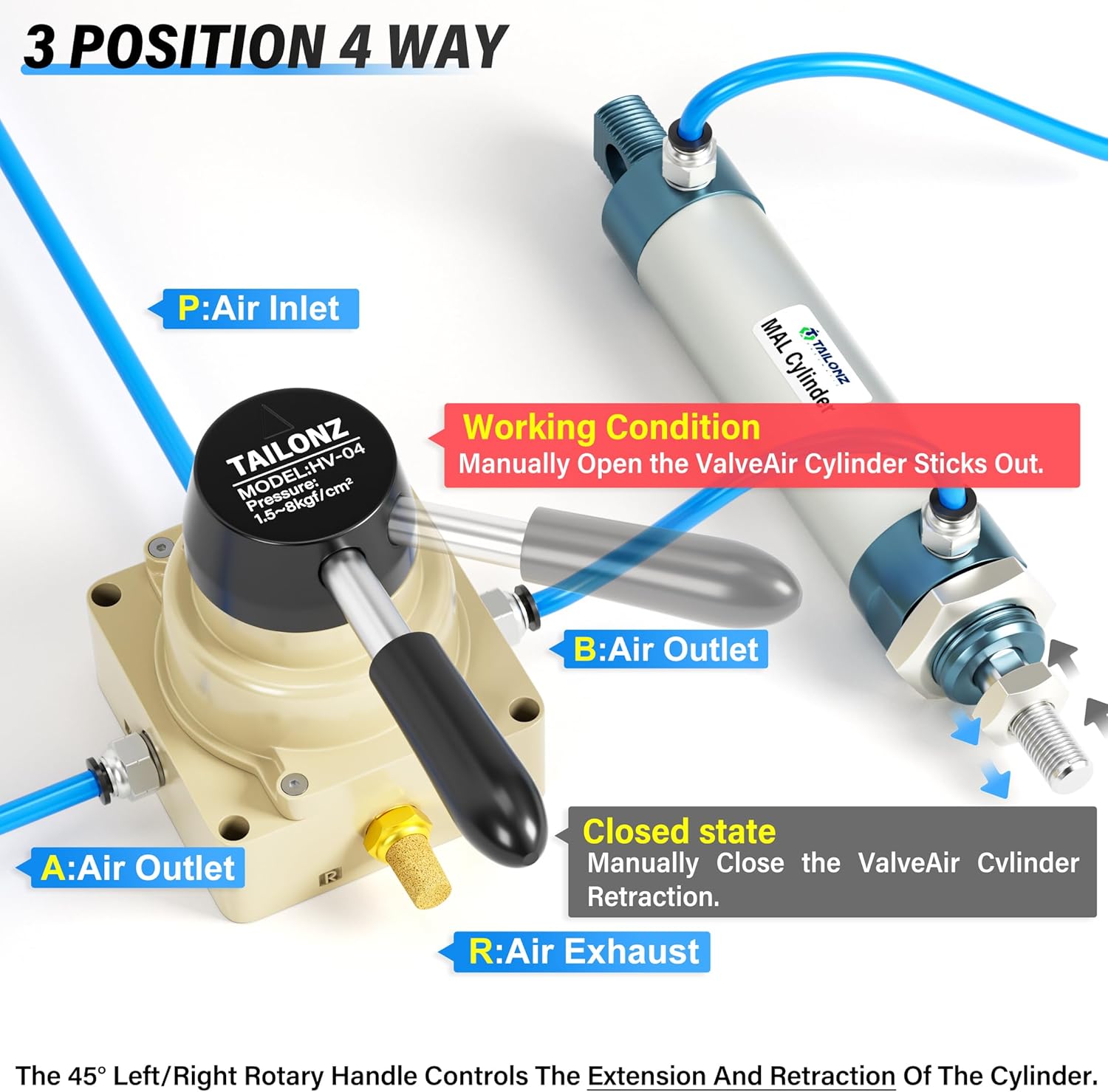

- 【Type】3 Position 4 Way

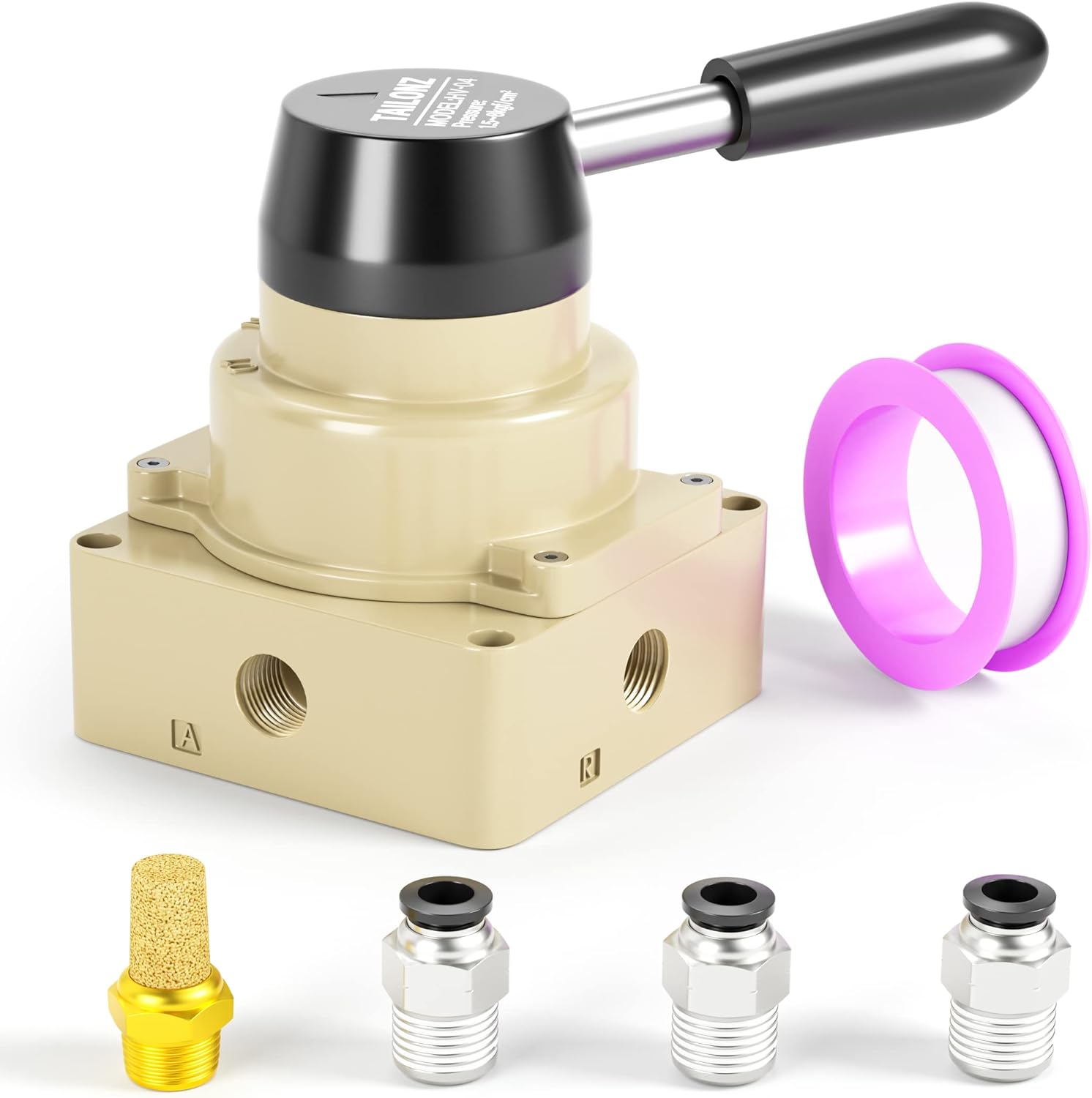

- ✔We provide matching fittings,You can connect directly to your 1/4 "or 6mm tube
| Size | 1/4" NPT |
|---|---|
| Brand Name | TAILONZ PNEUMATIC |
| Unit Count | 1 Count |
| Valve Type | Rotary Lever Hand Valve |
| Thread Size | 1/4 inches |
| Thread Type | NPT |
| Manufacturer | TAILONZ PNEUMATIC |
| Model Number | HV-02 |
| Material Type | Aluminum |
| Connector Type | Threaded |
| Item Type Name | Rotary Lever Hand Valve |
| Exterior Finish | Aluminum |
| Number of Ports | 4 |
| Maximum Pressure | 116 Pound per Square Inch |
| Specification Met | ASME B16.34 |
| Inlet Connection Size | 0.25 Inches |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Size | 0.25 Inches |
| Outlet Connection Type | NPT |
