Heav Duty Linear Stage CNC Linear Rail Slide Table Double Guide Rail 4PC HGR20 150mm Width SFU2010/SFU1605/SFU1610/SFU2005
Product details
| Management number | 234153200 | Release Date | 2026/06/27 | List Price | US$441.92 | Model Number | 234153200 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

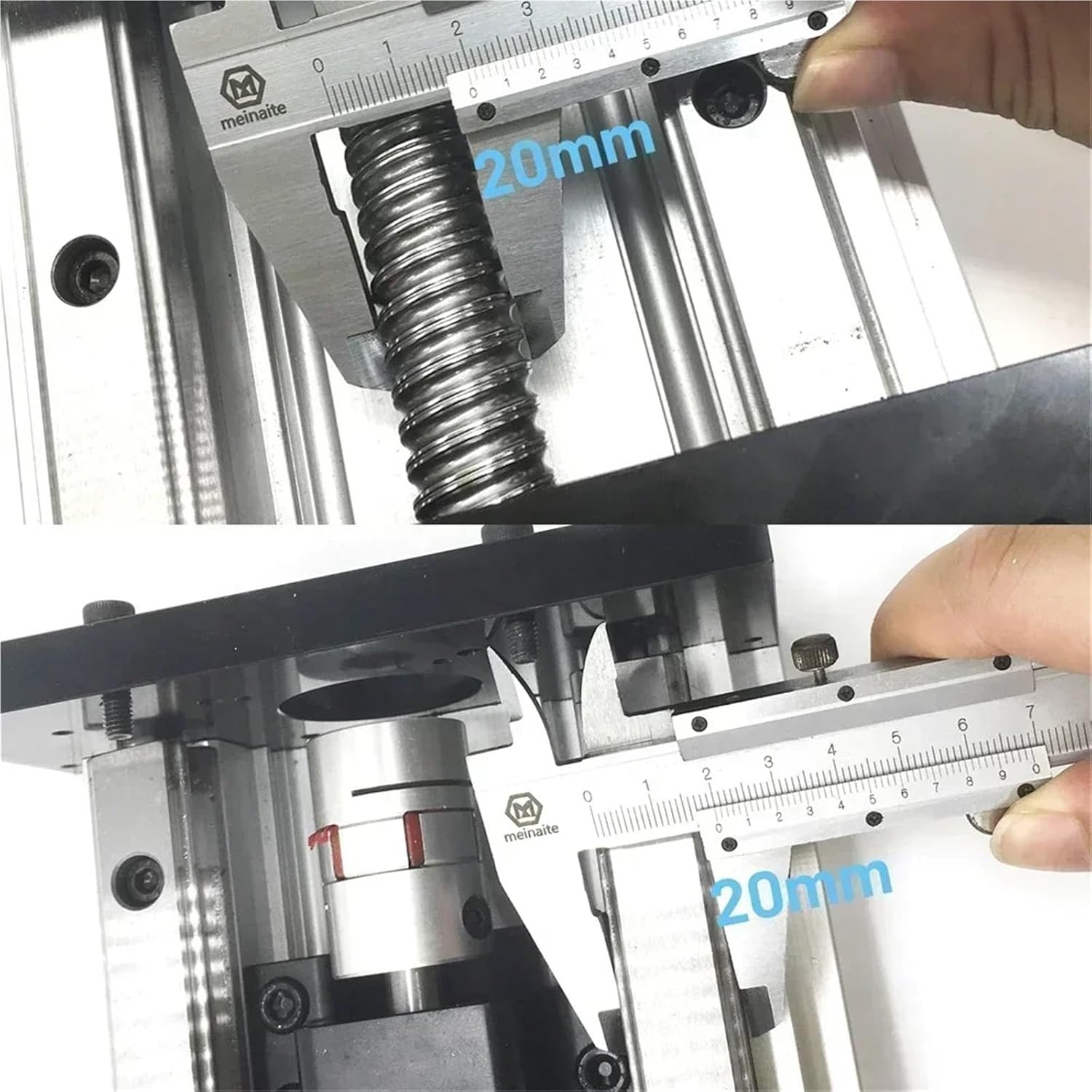

1* 150mm Width Sliding Table1* Coupling Model: SXG150*170Rail width: 20MMGuide model: 2*HGR20Block model: 4*HGH20Ballscrew Precision:C7Maximum speed: 100mm/sHorizontal load: 250KG (Max)Vertical load: 100KG(Max)Effective stroke:100mm-2000mmMobile panel size: 150mm*170mmRepeat positioning accuracy: 0.02mmSlide Material: Industrial aluminum profilesTotal length of Sliding Table(L): Effective stroke+217mmBallscrew Model: SFU1605 (Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm)/SFU1610/SFU2005/SFU2010 (Customizable SFU2020/SFU2505/SFU2510)Motor: Not included (The motor bracket is compatible with Nema23 and Nema34 stepper motors. If you need to customize the servo motor bracket, please inform us in .)Customize:Ballscrew model, motor bracket, front and back tooth screw rods,multi axis combinationModel Number : SXG150*170Guide Width or Diameter : 20mmOrigin : Mainland ChinaCertification : CESlide Material : Industrial aluminum profilesEffective stroke : 100mm-2000mmHorizontal load : 250KG (Max)Vertical load : 100KG(Max)Mobile panel size : 150mm*170mmTotal length of Sliding Table : Effective stroke+217MMRepeat positioning accuracy : 0.02mmMaximum speed : 100mm/sGuide model : 2*HGR20Block model : 4*HGH20Rail width : 20MMScrew Precision : C7Ballscrew : SFU2010/SFU1605/SFU1610/SFU2005Keywords 1 : cnc slide table 1000mmKeywords 2 : double rail slide tableKeywords 3 : heav duty slide tableKeywords 4 : CNC heav load table
- CPBGXJZD Heav Duty Linear Stage CNC Linear Rail Slide Table Double Guide Rail 4PC HGR20 150mm Width SFU2010/SFU1605/SFU1610/SFU2005
| ASIN | B0GP752ZJQ |
|---|---|
| Item Weight | 1.76 ounces |
| Manufacturer | CPBGXJZD |
| Item model number | OEEOOOTPJ |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
